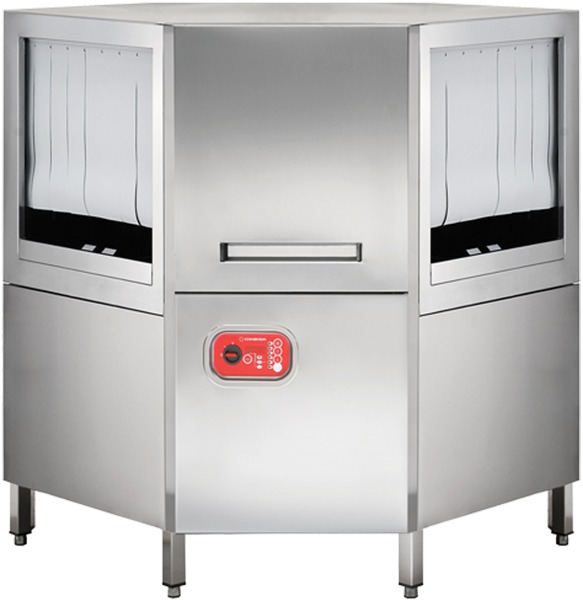

Comenda Red Line AC2 Series

Comenda Red Line AC2 Series

Product Features

  • Compact, state-of-the-art, highly versatile machines created in full compliance with the green philosophy applied by Comenda
  • Extremely compact size
  • All 304 stainless steel
  • Inspection doors with integral balancing springs
  • Compact installation dimensions
  • Deep drawn tanks with rounded corners
  • Fully self-draining vertical pumps
  • Door wipe seal for constant cleaning of the inside of the door
  • Electronic control panel with digital display temperature read out
  • Double-wall doors
  • 24V control circuit
  • Economiser that activates rinsing only when rack passes through
Product code: 2614813 – AC2A
Hot Water Supply 55°C: 19.04kW
Maximum Length: 1200mm
Output: 100 racks per hour
Total Electrical Load: 400V, 3 Neutral, 50Hz
Wash Tank Capacity: 80L
Water Consumption: 220L per hour
Product code: 2614848 – AC2
Hot Water Supply 55°C: 19.04kW
Maximum Length: 1150mm
Output: 100 racks per hour
Total Electrical Load: 400V, 3 Neutral, 50Hz
Wash Tank Capacity: 80L
Water Consumption: 220L per hour
Product code: 2614867 – AC2P
Hot Water Supply 55°C: 23.7kW
Maximum Length: 1650mm
Output: 150 racks per hour
Total Electrical Load: 400V, 3 Neutral, 50Hz
Wash Tank Capacity: 125L
Water Consumption: 300L per hour
