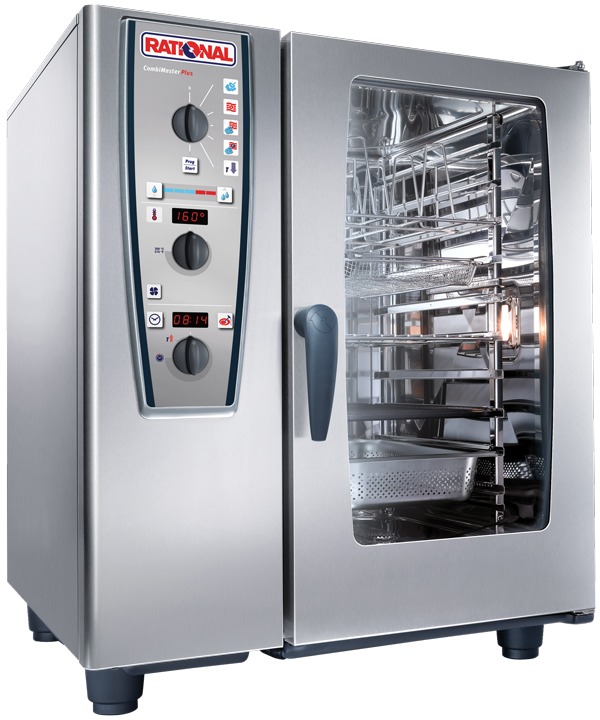

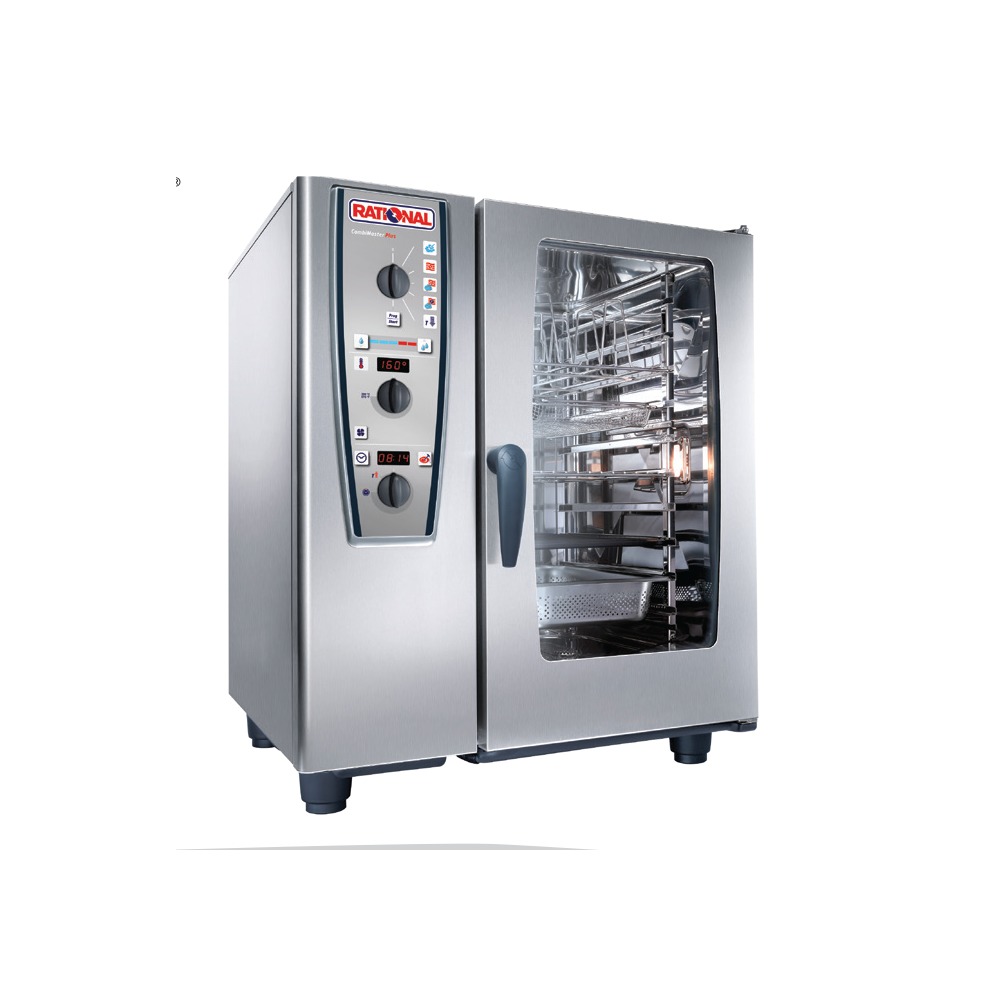

Rational CombiMaster Plus (Gas)

Rational CombiMaster Plus (Gas)

Product Features

  • The CombiMaster®Plus sets new standards not just in terms of cost/benefit analysis, but also with respect to effective performance.
  • The energy supplied to the food is metered exactly and can be extremely powerful if required. The sensitive measuring and control central functions ensure a uniform cooking cabinet climate that can be matched individually to the food. Thus, challenging and sophisticated products such as pan-fries, gratins or grilled food are always successful, even when the unit is fully utilised. This applies rack after rack, piece after piece and portion after portion. This is the difference that your guests will see, taste and enjoy.
Product code: 2611151 (LPG), 2611152 (NG), Model CM 201
Capacity: 6 x 2/1 GN
Dimensions: 1.069 x 971 x 782mm (H)
Dry Heat Connection: 28kW/31kW
Electricity Connection: 0.4kW
Fuse: 1 x 16A
Gas Supply/Connection: R 3/4”
Height (Incl. Draft Converter): 1.021mm
Lengthwise Loading: 2/1, 1/1 GN
Mains Connection: 1 NAC 230V
Max. Rated Thermal Load: 28kW/31kW
Moist Heat Connection: 21kW/23kW
Natural Gas/LPG: Liquid Gas
Number of Meals per Day: 60 - 160 (Guide only)
Water Inlet: R 3/4”
Water Outlet: DN 50
Water Pressure: 150 - 600kPa or 0.15 - 0.6mPa
Weight: 168kg
Product code: 2611151 (LPG), 2611152 (NG), Model CM 61
Capacity: 6 x 1/1 GN
Dimensions: 847 x 771 x 782mm (H)
Dry Heat Connection: 13kW/14kW
Electricity Connection: 0.3kW
Fuse: 1 x 16A
Gas Supply/Connection: R 3/4”
Height (Incl. Draft Converter): 1.021mm
Lengthwise Loading: 1/1, 1/2, 2/3, 1/3, 2/8 GN
Mains Connection: 1 NAC 230V
Max. Rated Thermal Load: 13kW/14kW
Moist Heat Connection: 12kW/13kW
Natural Gas/LPG: Liquid Gas
Number of Meals per Day: 30 - 80 (Guide only)
Water Inlet: R 3/4”
Water Outlet: DN 50
Water Pressure: 150 - 600kPa or 0.15 - 0.6mPa
Weight: 126kg
Product code: 2611154 (LPG), 2611155 (NG), Model CM 202
Capacity: 6 x 2/1 GN
Dimensions: 1.069 x 971 x 782mm (H)
Dry Heat Connection: 28kW/31kW
Electricity Connection: 0.4kW
Fuse: 1 x 16A
Gas Supply/Connection: R 3/4”
Height (Incl. Draft Converter): 1.021mm
Lengthwise Loading: 2/1, 1/1 GN
Mains Connection: 1 NAC 230V
Max. Rated Thermal Load: 28kW/31kW
Moist Heat Connection: 21kW/23kW
Natural Gas/LPG: Liquid Gas
Number of Meals per Day: 60 - 160 (Guide only)
Water Inlet: R 3/4”
Water Outlet: DN 50
Water Pressure: 150 - 600kPa or 0.15 - 0.6mPa
Weight: 168kg
Product code: 2611154 (LPG), 2611155 (NG), Model CM 62
Capacity: 6 x 1/1 GN
Dimensions: 847 x 771 x 782mm (H)
Dry Heat Connection: 10.3kW
Electricity Connection: 0.4kW
Fuse: 3 x 16A
Gas Supply/Connection: R 3/4”
Height (Incl. Draft Converter): 1.021mm
Lengthwise Loading: 1/1, 1/2, 2/3, 1/3, 2/8 GN
Mains Connection: 3 NAC 400V
Max. Rated Thermal Load: 28kW/31kW
Moist Heat Connection: 9kW
Natural Gas/LPG: Liquid gas
Number of Meals per Day: 30 - 80 (Guide only)
Water Inlet: R 3/4”
Water Outlet: DN 50
Water Pressure: 150 - 600kPa or 0.15 - 0.6mPa
Weight: 110kg
Product code: 2611157 (LPG), 2611158 (NG), Model CM 101
Capacity: 6 x 2/1 GN
Dimensions: 1.069 x 971 x 782mm (H)
Dry Heat Connection: 21.8kW
Electricity Connection: 0.39kW
Fuse: 3 x 32A
Gas Supply/Connection: R 3/4”
Height (Incl. Draft Converter): 1.281mm
Lengthwise Loading: 2/1, 1/1 GN
Mains Connection: 3 NAC 400V
Max. Rated Thermal Load: 22kW/24kW
Moist Heat Connection: 18kW
Natural Gas/LPG: Liquid gas
Number of Meals per Day: 60 - 160 (Guide only)
Water Inlet: R 3/4”
Water Outlet: DN 50
Water Pressure: 150 - 600kPa or 0.15 - 0.6mPa
Weight: 142kg
Product code: 2611160 (LPG), 2611161 (NG), Model CM 102
Capacity: 6 x 1/1 GN
Dimensions: 847 x 771 x 782mm (H)
Dry Heat Connection: 13kW/14kW
Electricity Connection: 0.3kW
Fuse: 1 x 16A
Gas Supply/Connection: R 3/4”
Height (Incl. Draft Converter): 1.021mm
Lengthwise Loading: 1/1, 1/2, 2/3, 1/3, 2/8 GN
Mains Connection: 1 NAC 230V
Max. Rated Thermal Load: 13kW/14kW
Moist Heat Connection: 12kW/13kW
Natural Gas/LPG: Liquid Gas
Number of Meals per Day: 30 - 80 (Guide only)
Water Inlet: R 3/4”
Water Outlet: DN 50
Water Pressure: 150 - 600kPa or 0.15 - 0.6mPa
Weight: 126kg
