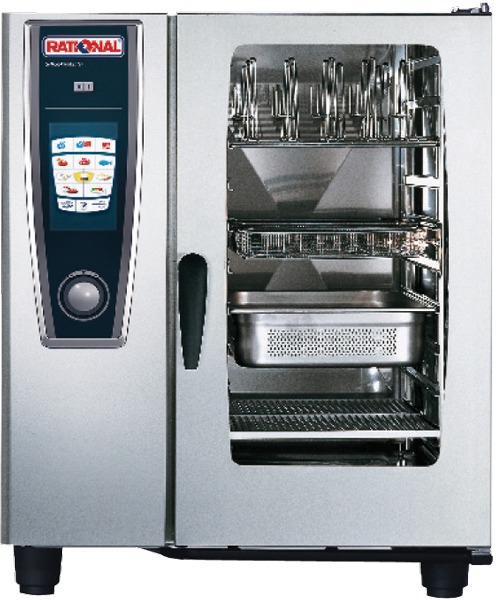

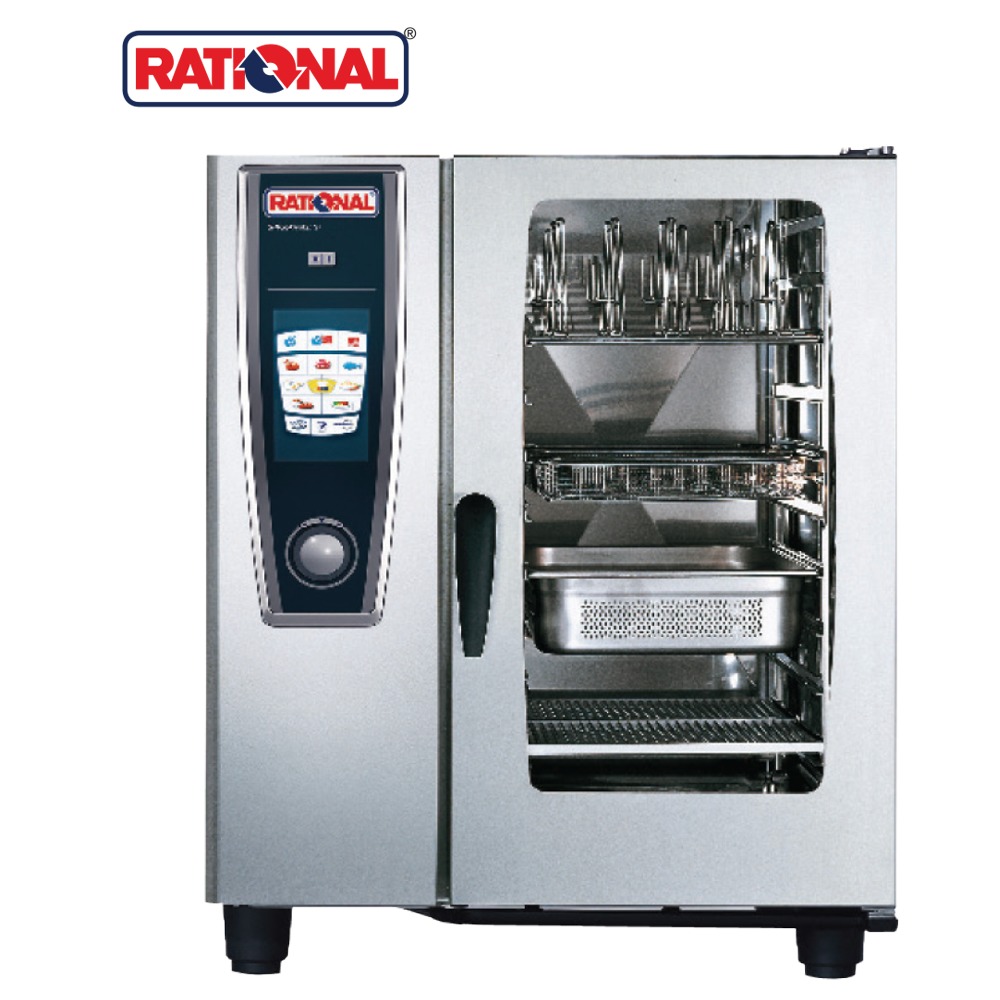

Rational SCC 5 Senses (Gas)

Rational SCC 5 Senses (Gas)

Product Features

  • SelfCookingControl with 7 cooking modes – meat, poultry, fish, side dishes, egg dishes, baked products, Finishing
  • Efficient LevelControl (ELC) – mixed loads with individual rack monitoring and load-specific time adjustment for every rack
  • Combi-Steamer Mode with 3 modes – steam 30°C - 130°C, hot air 30°C - 300°C, combination of steam and hot air 30°C - 300°C
  • ClimaPlus Control – humidity measured, set and regulated to one percent accuracy
  • Automatic Finishing – processes for plated banquets, buffets, à la carte, etc.
  • Delta-T cooking for gently cooking large joints
  • The patented HiDensityControl redefines cooking quality, giving 30% more capacity and 20% less energy consumption
Product code: 2611171 (LPG), 2611172 (NG), Model SCC 61
Capacity: 6 x 1/1 GN
Dimensions: 847 x 771 x 782mm (H)
Dry heat Connection: 13kW/14kW
Electricity Connection: 0.3kW
Fuse: 1 x 16A
Gas Supply/Connection: R 3/4”
Height (Incl. Draft Converter: 1.021mm
Lengthwise Loading: 1/1, 1/2, 2/3, 1/3, 2/8 GN
Mains Connection: 1 NAC 230V
Max. Rated Thermal Load: 13kW/14kW
Moist Heat Connection: 12kW/13kW
Natural Gas/LPG: Liquid gas
Number of Meals per Day: 30 - 80 (Guide only)
Water Inlet: R 3/4”
Water Outlet: DN 50
Water Pressure: 150 - 600kPa or 0.15 - 0.6mPa
Weight: 110kg
Product code: 2611174 (LPG), 2611175 (NG), Model SCC 62
Capacity: 6 x 2/1 GN
Dimensions: 1.069 x 971 x 782mm (H)
Dry heat Connection: 28kW/31kW
Electricity Connection: 0.4kW
Fuse: 1 x 16A
Gas Supply/Connection: R 3/4”
Height (Incl. Draft Converter: 1.021mm
Lengthwise Loading: 2/1, 1/1 GN
Mains Connection: 1 NAC 230V
Max. Rated Thermal Load: 28kW/31kW
Moist Heat Connection: 21kW/23kW
Natural Gas/LPG: Liquid gas
Number of Meals per Day: 60 - 160 (Guide only)
Water Inlet: R 3/4”
Water Outlet: DN 50
Water Pressure: 150 - 600kPa or 0.15 - 0.6mPa
Weight: 168kg
Product code: 2611177 (LPG), 2611178 (NG), Model SCC 101
Capacity: 10 x 1/1 GN
Dimensions: 847 x 771 x 1042mm (H)
Dry heat Connection: 22kW/24kW
Electricity Connection: 0.39kW
Fuse: 1 x 16A
Gas Supply/Connection: R 3/4”
Height (Incl. Draft Converter: 1.281mm
Lengthwise Loading: 1/1, 1/2, 2/3, 1/3, 2/8 GN
Mains Connection: 1 NAC 230V
Max. Rated Thermal Load: 22kW/24kW
Moist Heat Connection: 20kW/22kW
Natural Gas/LPG: Liquid gas
Number of Meals per Day: 80 - 150 (Guide only)
Water Inlet: R3/4"
Water Outlet: DN 50
Water Pressure: 150 - 600kPa or 0.15 - 0.6mPa
Weight: 154.5kg
Product code: 2611180 (LPG), 2611181 (NG), Model SCC 102
Capacity: 10 x 2/1 GN
Dimensions: 1.069 x 971 x 1042mm (H)
Dry heat Connection: 45kW/50kW
Electricity Connection: 0.6kW
Fuse: 1 x 16A
Gas Supply/Connection: R 3/4”
Height (Incl. Draft Converter: 1.281mm
Lengthwise Loading: 2/1, 1/1 GN
Mains Connection: 1 NAC 230V
Max. Rated Thermal Load: 45kW/50kW
Moist Heat Connection: 40kW/44kW
Natural Gas/LPG: Liquid gas
Number of Meals per Day: 150 - 300 (Guide only)
Water Inlet: R 3/4”
Water Outlet: DN 50
Water Pressure: 150 - 600kPa or 0.15 - 0.6mPa
Weight: 198kg
Product code: 2611180 (LPG), 2611181 (NG), Model SCC 201
Capacity: 20 x 1/1 GN
Dimensions: 879 x 791 x 1.782mm (H)
Dry heat Connection: 44kW/48kW
Electricity Connection: 0.7kW
Fuse: 1 x 16A
Gas Supply/Connection: R 3/4”
Height (Incl. Draft Converter: 2.021mm
Lengthwise Loading: 2/1, 1/1 GN
Mains Connection: 1 NAC 230V
Max. Rated Thermal Load: 44kW/48kW
Moist Heat Connection: 38kW/40kW
Natural Gas/LPG: Liquid gas
Number of Meals per Day: 150 - 300 (Guide only)
Water Inlet: R 3/4”
Water Outlet: DN 50
Water Pressure: 150 - 600kPa or 0.15 - 0.6mPa
Weight: 286kg
Product code: 2611183 (LPG), 2611184 (NG) Model SCC 202
Capacity: 20 x 2/1 GN
Dimensions: 1.084 x 996 x 1.782mm (H)
Dry heat Connection: 90kW/100kW
Electricity Connection: 1.1kW
Fuse: 1 x 16A
Gas Supply/Connection: R 3/4”
Height (Incl. Draft Converter: 2.021mm
Lengthwise Loading: 1/1, 1/2, 2/3, 1/3, 2/8 GN
Mains Connection: 1 NAC 230V
Max. Rated Thermal Load: 90kW/100kW
Moist Heat Connection: 51kW/56kW
Natural Gas/LPG: Liquid gas
Number of Meals per Day: 150 - 300 (Guide only)
Water Inlet: R 3/4”
Water Outlet: DN 50
Water Pressure: 150 - 600kPa or 0.15 - 0.6mPa
Weight: 370.5kg
