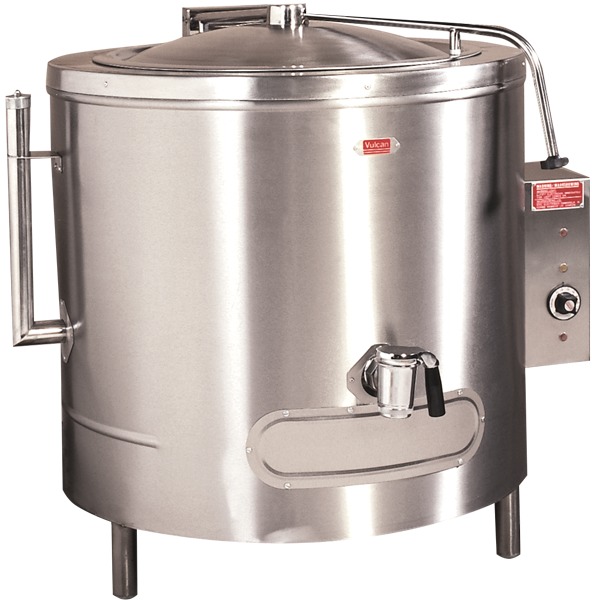

BP-135 (Electric)

BP-135 (Electric)

Product Features

  • Oil jacketed boiling pan
  • Inner pan, base and curb manufactured from 2mm type AISI 304
  • CR-NI stainless steel
  • 40mm fibreglass insulation
  • Spring-balanced lid with safety handle
  • Fitted with breather tube, oil filler pipe, oil drain valve and chrome
  • plated draw-off cock
  • Stainless steel clad immersion elements
  • Thermostatically controlled 50ºC - 160ºC – pre-set overriding thermostat 180ºC

Optional Extras

  • Thermia oil per 20 litre (2715601)
  • Side-mounted swivel water filler tap (3303860)
Product code: 3003321 (Electric model)
Crated Size: 1190 x 990 x 1200mm
Crated Weight: 162kg
Dimensions: 920 x 947 x 880mm (H)
Electrical Load: 9kW, 400V, 3 Phase, Neutral and Earth
Oil Jacket Capacity: 36L
Pan Capacity: 135L
Product code: 3003449 (Gas model)
Crated Size: 1190 x 990 x 1200mm
Crated Weight: 162kg
Dimensions: 920 x 947 x 880mm (H)
Electrical Load: 9kW, 400V, 3 Phase, Neutral and Earth
Oil Jacket Capacity: 36L
Pan Capacity: 135L
Weight: 100kg
