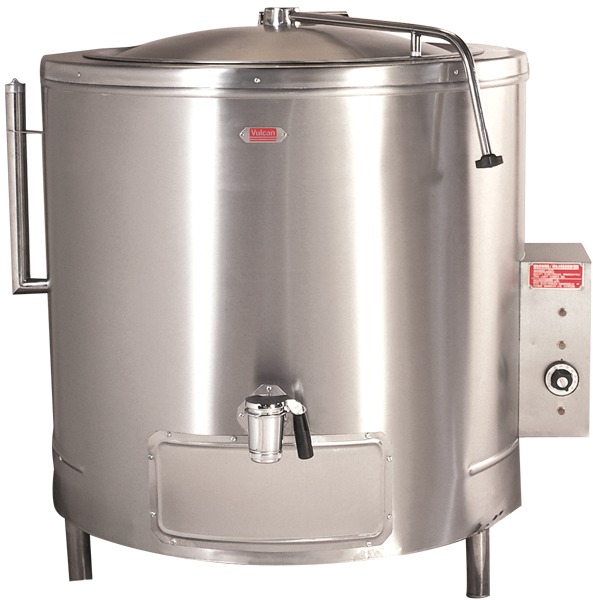

BP-225 (Electric)

BP-225 (Electric)

Product Features

  • Oil jacketed boiling pan
  • Inner pan, base and curb manufactured from 2mm type AISI 304 CR-NI stainless steel
  • 40mm fiberglass insulation
  • Spring-balanced lid with safety handle
  • Fitted with breather tube, oil filler pipe, oil drain valve and chrome plated draw-off cock
  • Stainless steel clad immersion elements
  • Thermostatically controlled 50ºC - 160ºC - pre-set overriding thermostat 180ºC
Product code: 3003372 (Electric model)
Crated Size: 1280 x 1100 x 1320mm
Crated Weight: 185kg
Dimensions: 1009 x 1037 x 1000mm (H)
Electrical Load: 18kW, 400V, 3 Phase, Neutral and Earth
Oil Jacket Capacity: 60L
Pan Capacity: 225L
Weight: 125kg
Product code: 3003450 (Gas model)
Crated Size: 1280 x 1100 x 1320mm
Crated Weight: 185kg
Dimensions: 1009 x 1037 x 1000mm (H)
Electrical Load: 18kW, 400V, 3 Phase, Neutral and Earth
Oil Jacket Capacity: 60L
Pan Capacity: 225L
Weight: 125kg
