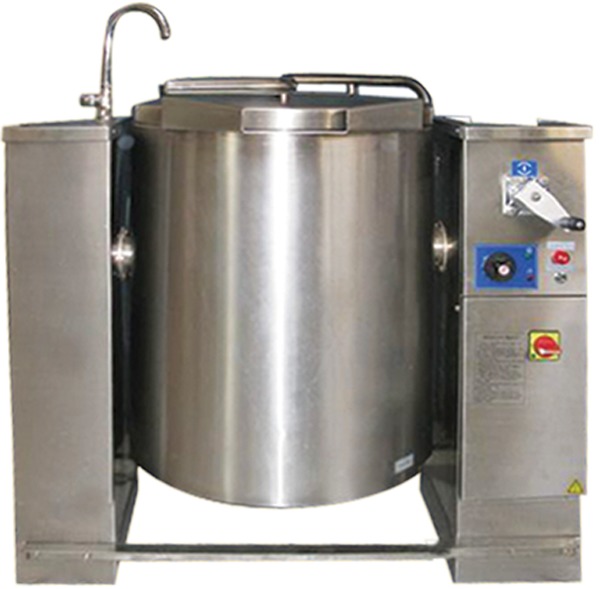

Vulcan C Series - Electric Steam Pot

Vulcan C Series - Electric Steam Pot

Product Features

  • Electrical components – telemacanique
  • Hinged lid to RHS pedestal – no steam burn upon opening
  • Full stainless steel construction
  • Insulated lid and body – cooks without energy
  • Silicone wiring
  • 0.8 bar workings – no need for a 3-year equipment pressure test
  • Internal markings – 10L increments
  • External temp – lid 26ºC max; box 32ºC max
  • Direct water feed to steam generator
  • 40L, 60L, 80L, 100L, 120L, 150L options
  • Servicing by tilting – reduces maintenance
  • Corrosion free
  • Equipped with:
  • Steam generator
  • Automatic steam pressure control Pressure limiter
  • Steam pressure safety valve
  • Boiling-away protector
  • Tilting protector
  • Strength reducer and tilting speed reducer
Product code: 2610604 – model SGT100A
Dimensions: 1120 x 670 x 900mm (H)
Litres: 100L
Power: 12kW
Pressure: 0.08mPa/CM2
Product code: 2610605 – model SGT60A
Dimensions: 1020 x 570 x 900mm (H)
Litres: 60L
Power: 9kW
Pressure: 0.08mPa/CM2
Product code: 2610607 – model SGT150A
Dimensions: 1220 x 750 x 1000mm (H)
Litres: 150L
Power: 15kW
Pressure: 0.08mPa/CM2
Product code: TBA – model SGT40A
Dimensions: 1020 x 570 x 900mm
Litres: 40L
Power: 9kW
Pressure: 0.08mPa/CM2
Product code: TBA – model SGT80A
Dimensions: 1120 x 670 x 900mm (H)
Litres: 80L
Power: 12kW
Pressure: 0.08mPa/CM2
